Microsoft Azure Cloud managed Database services
Srinivasa Rao • April 20, 2020

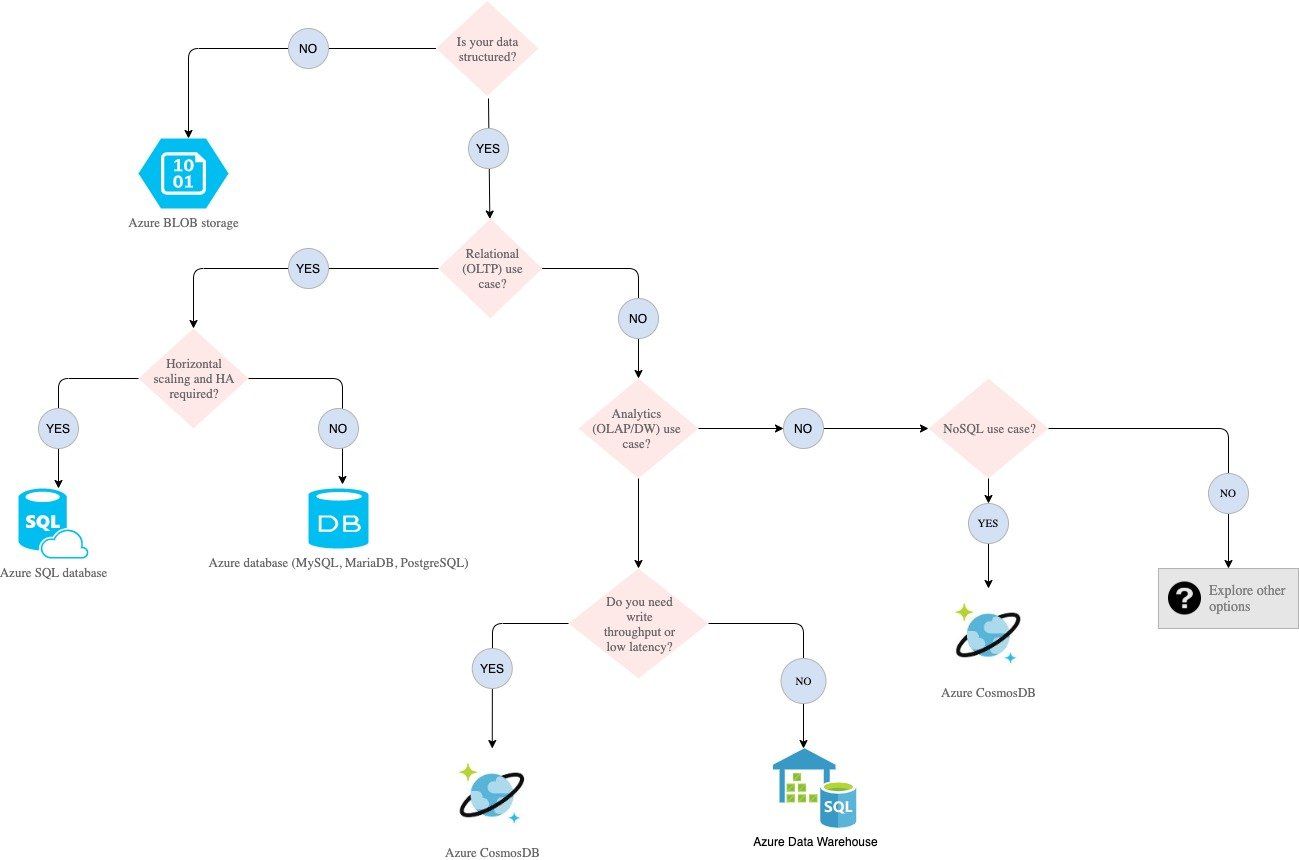

Database options on Microsoft Azure
| Name | Description | Usage |
|---|---|---|
| Azure SQL Database | Fully managed SQL Server database | Where we need a relational database with horizontal scalability. Can be used where we have very high volumes of data. |
| Azure Database | MySQL, MariaDB and PostgreSQL | Where we need a relational database and database as a service. Can be used for a low volume of data. |
| Azure Synapse Analytics (SQL Data Warehouse) | Horizontally scalable Data warehouse database | Can be used where we need to perform analytical queries on huge amounts of data with very low update. enterprise data warehousing and Big Data analytic |
| Azure Cosmos DB | Horizontally scalable NoSQL Database. | Where updates and low-latency data requirements are needed like streaming. Low latency and high available NoSQL database. |
| BLOB storage | Dynamically scalable object store | Used to store raw data files that include incoming data files from source systems and any unstructured files. This can be the base of the data lake. This serves raw data lake layer. Similar to HDFS in Hadoop environment. |
| Azure Cache for Redis | In-memory cache database | Used for caching, session management and any intermediator caching need. Built on Redis. |
Azure BLOB is Microsoft’s cloud managed service for object storage. It can be used to store the unstructured data and also can be used as raw data layer for modern multi-layered data lakes on Azure cloud.
Blob storage supports Azure Data Lake Storage Gen2, Microsoft's enterprise big data analytics solution for the cloud. Azure Data Lake Storage Gen2 offers a hierarchical file system as well as the advantages of Blob storage, including:
• Low-cost, tiered storage
• High availability
• Strong consistency
• Disaster recovery capabilities
Azure SQL Database
Azure SQL database is a fully managed relational database that provides the SQL Server engine compatibility. Azure SQL database is now Azure arc-enabled. You can run this service on premises on infrastructure of your choice with cloud benefits like automation, no end of support, unified management, and a cloud billing model.
Azure Database for MySQL, PostgreSQL and MariaDB
Azure also provides managed database services built on MySQL, MariaDB and PostgreSQL.
Azure Synapse Analytics (SQL Data Warehouse)
Azure SQL Data Warehouse is managed analytical service that brings together enterprise data warehouse and Big Data analytics.
Azure Cosmos DB
Azure Cosmos DB is a managed NoSQL database available on Azure cloud which provides low latency, high availability and scalability. This will allow to migrate MongoDB, Cassandra and other NoSQL workloads to the cloud.
Azure Cache for Redis
Azure Cache for Redis is a powerful fast and scalable in-memory data store built on Redis open source.
