Spark-On-Kubernetes is growing in adoption across the ML Platform and Data engineering. The goal of this blog is to create a multi-tenant Jupyter notebook server with built-in interactive Spark sessions support with Spark executors distributed as Kubernetes pods.
Problem Statement
- Requires designing and build clusters which takes a lot of time and effort.
- Maintenance and support.
- Shared environment.
- Expensive as there are a lot of overheads like master nodes and so on.
- Not very flexible as different teams need different libraries.
- Different cloud technologies and on-premises come with different sets of big data implementations.
- Cannot be used for a large pool of users.
The proposed solution contains 2 parts, which will work together to provide a complete solution. This will be implemented on Kubernetes so that it can work on any cloud or on-premises in the same fashion.
I. Multi-tenant Jupyterhub
JupyterHub allows users to interact with a computing environment through a webpage. As most devices have access to a web browser, JupyterHub makes it easy to provide and standardize the computing environment of a group of people (e.g., for a class of data scientists or an analytics team).
This project will help us to set up our own JupyterHub on a cloud and leverage the cloud's scalable nature to support large groups of users. Thanks to Kubernetes, we are not tied to a specific cloud provider.
II. Spark on Kubernetes (SPOK)
Users can spin their own spark resources by creating sparkSession. Users can request several executors, cores per executor, memory per executor and driver memory along with other options. The Spark environment will be ready within a few seconds. Dynamic allocation will be used if none of those options are chosen.
All the computes will be terminated if they’re idle for 30 minutes (or can be set by the user). The code will be saved to persistent storage and available when the user logs-in next time.

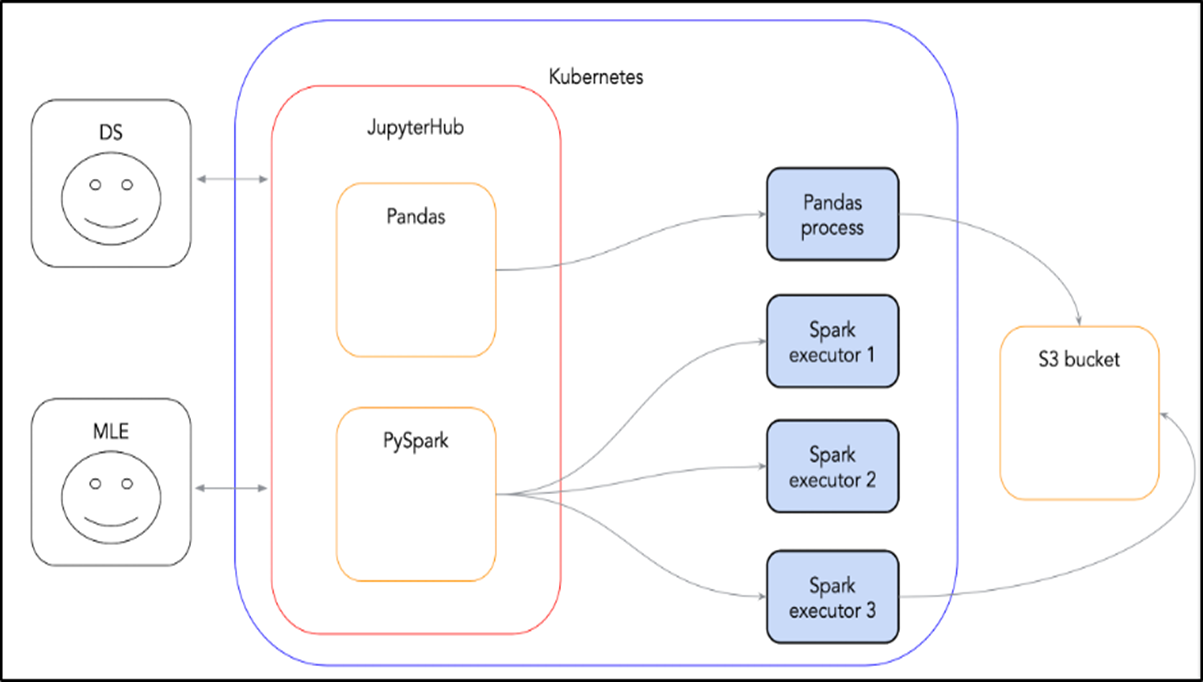

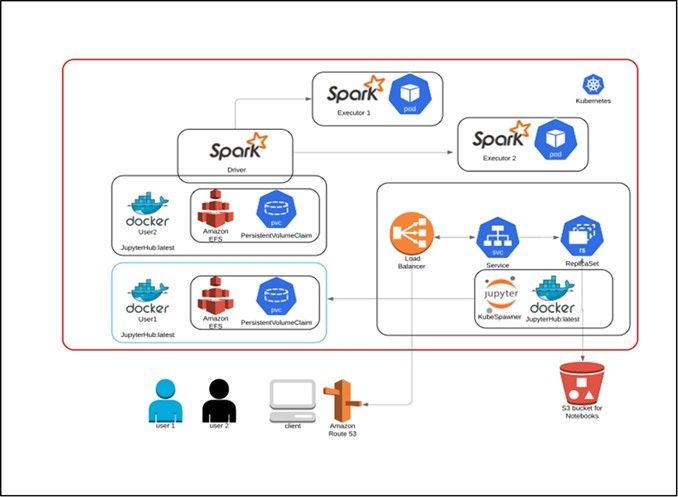

Data Flow Diagram
Implementation
Interface

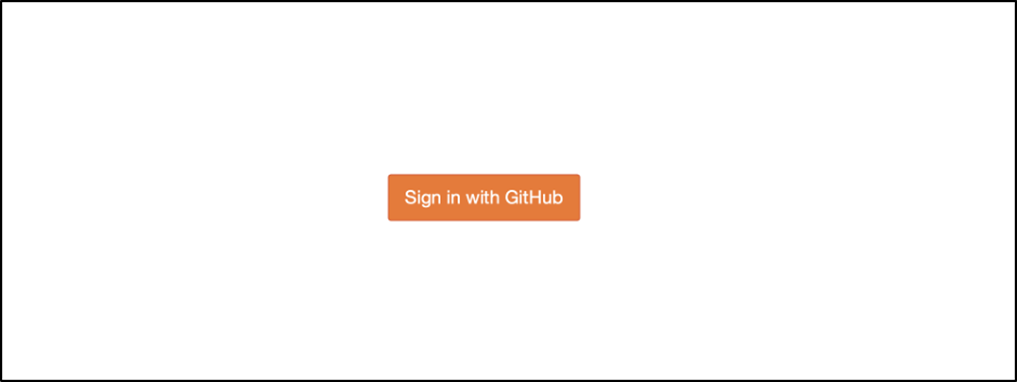

WebURL: https://Jupyterhub.*****.com
Notebook server configuration

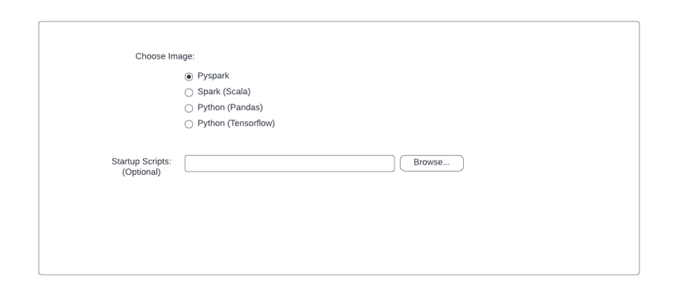

In this section, the user selects the image and configs like pySpark, python with pandas and so on.
"About Author"
The author has extensive experience in Big Data Technologies and worked in the IT industry for over 25 years at various capacities after completing his BS and MS in computer science and data science respectively. He is certified cloud architect and holds several certifications from Microsoft and Google. Please contact him at srao@unifieddatascience.com if any questions.
